Infomir MAG540w3

Infomir MAG540w3

€101,48 EUR
€116,63 EUR €101,48 EUR
Sale Sold out
Taxes included.

More information

MAG540w3 Linux set-top boxes: stunning picture, volumetric sound

The MAG540w3 is a 5-series set-top box from Infomir. The device has all the hardware and software required for smooth playback of hi-res content. Also, you won’t have to reboot it time and time again—with the Amlogic S905Y4 SoC featuring four ARM Cortex-A35 CPU cores, the set-top box can work for months on end.

MAG540w3 supports 4K video and Dolby Digital Plus™ technology, letting you enjoy hi-res content with eight-channel volumetric sound. With the stunning picture and clear eight-channel sound, you can get fully immersed in the action. Meanwhile, the built-in HEVC codec will ensure the smoothest playback possible.

If it’s more convenient for you to control your set-top box with a mouse and keyboard, you’re in luck—in addition to remote control, the MAG540w3 has two USB ports for peripherals. You can also use them to hook up external storage if required. Furthermore, the device can connect to the Internet in any way you want: it has an Ethernet port as well as a Wi-Fi module. Finally, the set-top box’s stylish body, featuring Qubic design, will elegantly blend in with your interior.



*Infomir does not distribute, broadcast, or otherwise provide television or video content.

Technology for the best user experience MAG 540

  • 4K and HEVC support
  • 1 GB RAM
  • 4 GB eMMC
  • Wi-Fi
  • Quad-core ARM Cortex-A35

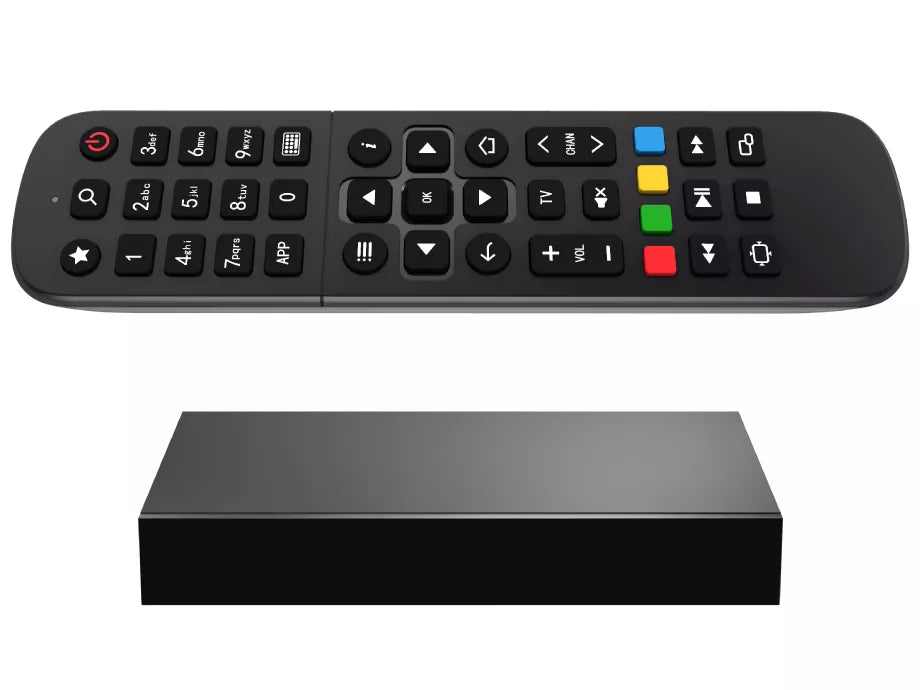

  • User-friendly IR remote

MAG540 specifications

Audio and video

  • Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formatsMP3, OGG, WAV, AAC
  • Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
  • Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formatsJPEG, PNG, BMP, RAW
  • SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formatsM3U, M3U8, PLS, CUE

    MAG540 specifications

    Audio and video

    • Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
    • Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
    • Audio formatsMP3, OGG, WAV, AAC
    • Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
    • Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
    • Image formatsJPEG, PNG, BMP, RAW
    • SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
    • Playlist formatsM3U, M3U8, PLS, CUE

    Hardware features

    • ChipsetAmlogic S905Y4-B
    • Performance16,500 DMIPS
    • CPUQuad-core ARM Cortex-A35
    • RAM1 GB DDR3
    • Storage4 GB eMMC

    Software and CAS/DRM

    • OSLinux 4.9
    • DRM/CASOn request
    • MiddlewarePre-integrated Ministra TV platform. We can integrate the operator’s applications into the image and customize or replace the image.

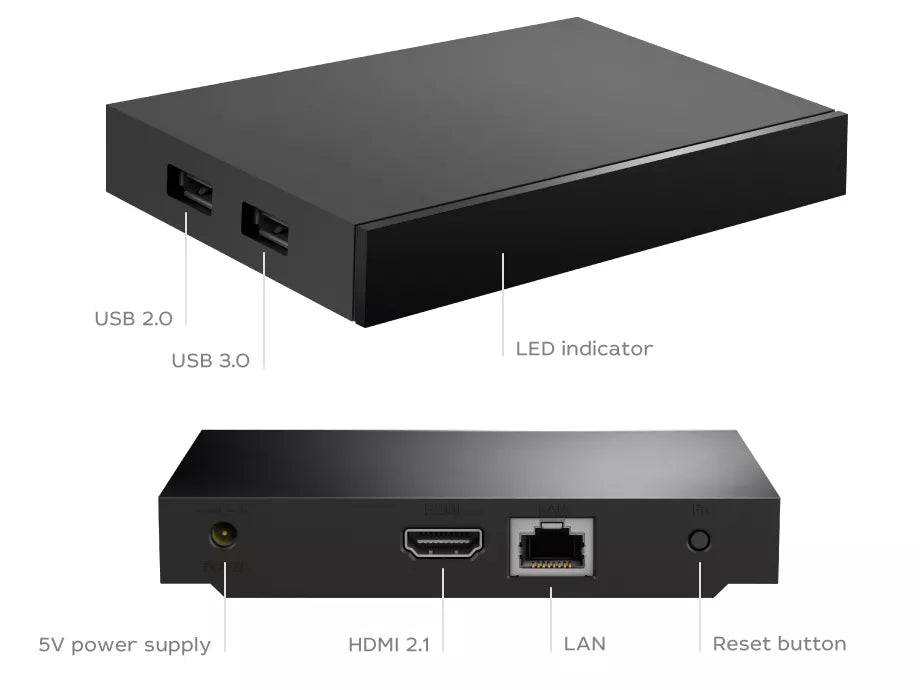

    Interfaces

    • Digital portsHDMI 2.1
    • Ethernet100 Mbps
    • USB2 × USB 2.0
    • Bluetooth—
    • Wi-FiBuilt-in 2T2R ac

    Power

    • Power supply unitDC 5 V, 2 A

    Dimensions

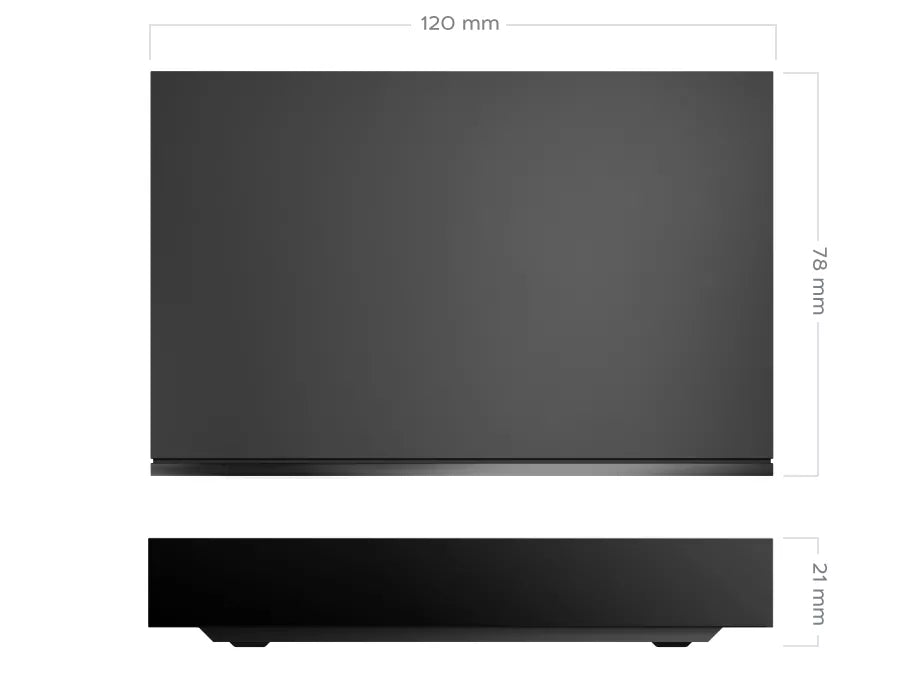

    • Width/depth/height120 × 78 × 21 mm
    • Weight110 g
