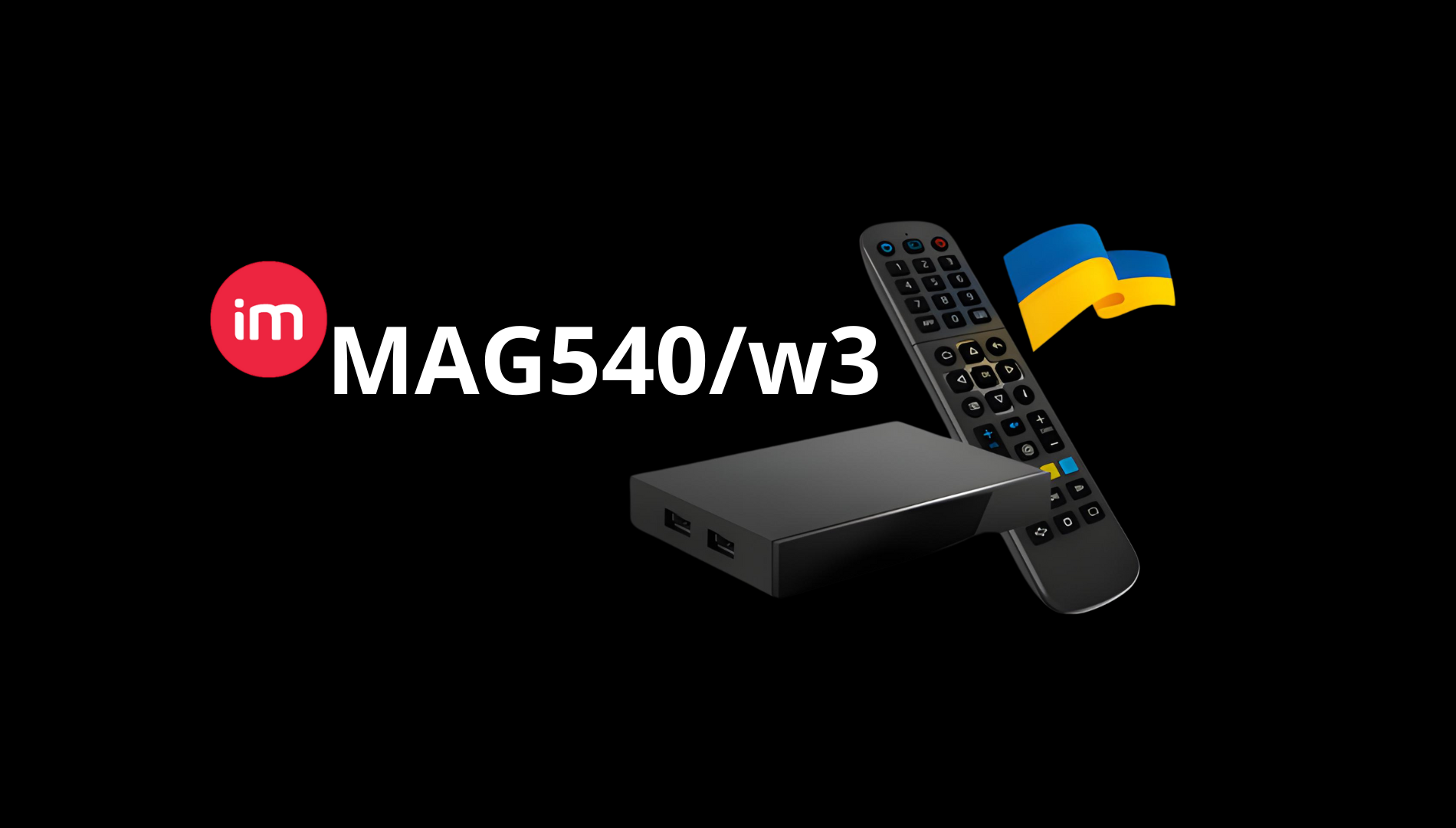

MAG540 –High-performance 4K STBs with a brand newARM Cortex-A35 CPU

MAG540 and MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.

With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request.

BuyWholesale

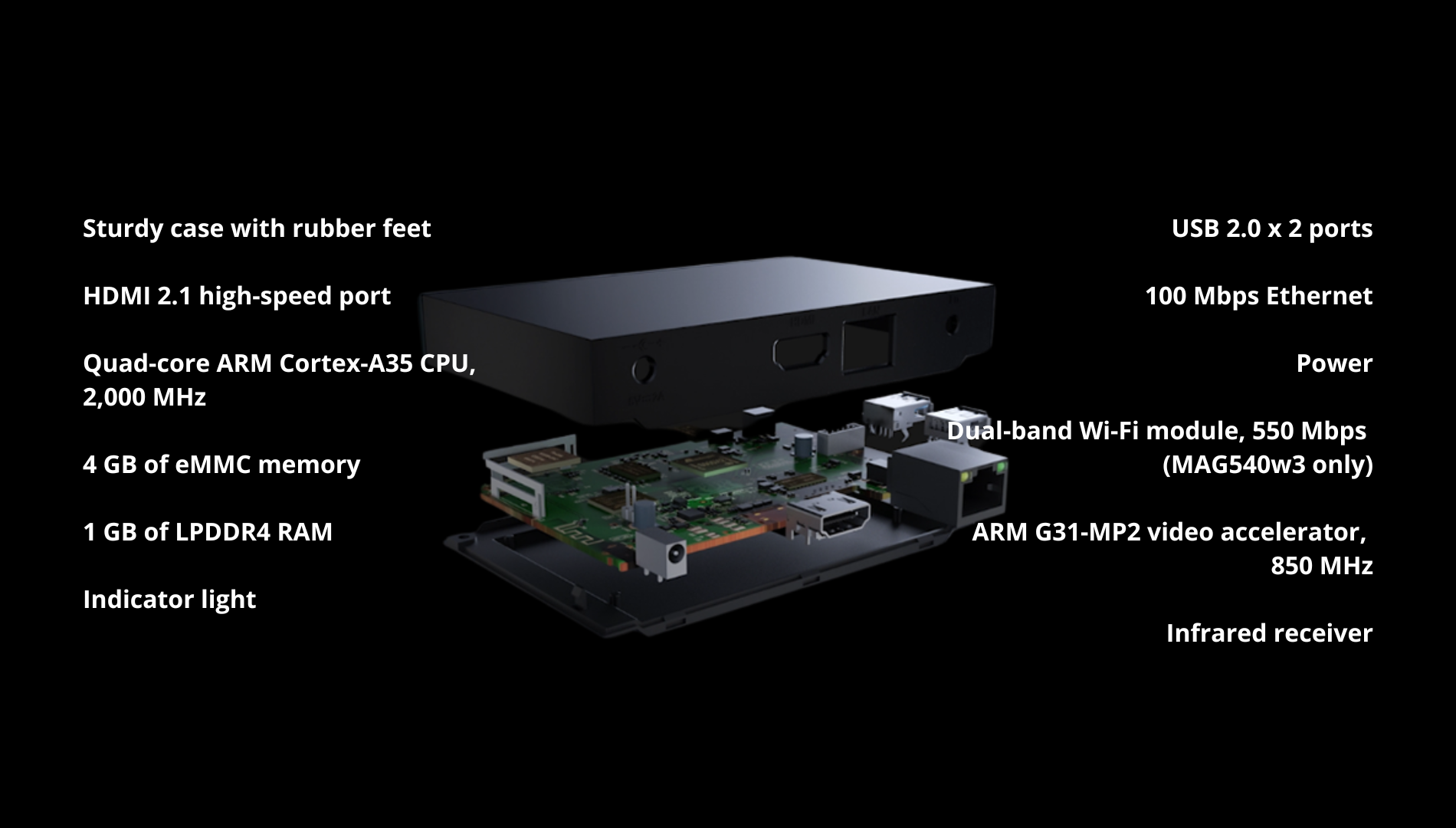

High-performance Amlogic S905Y4 chipset

The devices are powered by an Amlogic S905Y4 chipset with a quad-core ARM Cortex-A35 processor. Thanks to their power and reliability, the set-top box can work for months without rebooting.

The MAG540/540w3 hardware ensures a fast interface and smooth playback.

It plays 4K HDR video at 60 fps

MAG540/540w3 supports AV1 and HEVC codecs to make sure the device plays 4K content without overloading the network2 While the H.264 codec requires 32 Mbit/sec to process such video, HEVC requires only 16 Mbit/sec.

Ethernet and Wi-Fi connectivity

The MAG540w3 modification has a built-in Wi-Fi module.

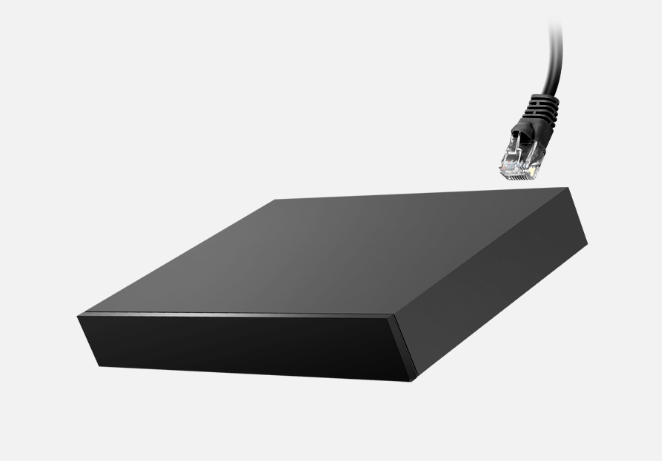

MAG540

You can connect it via a 100 Mbit/s Ethernet interface and use it only within a wired network.

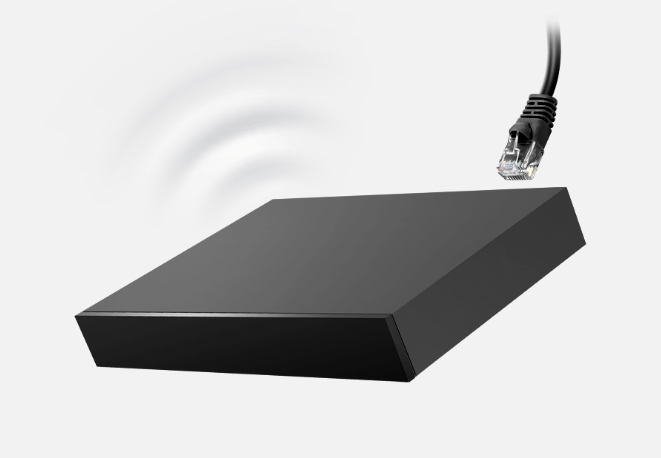

MAG540w3

The set-top box supports both wired and wireless connections. The Ethernet port provides data transfer speeds of up to 100 Mbit/s. The Wi-Fi module operates in two bands with data transfer speeds of up to 100 Mbit/s in 2.4 GHz mode and 550 Mbit/s in 5 GHz4 mode

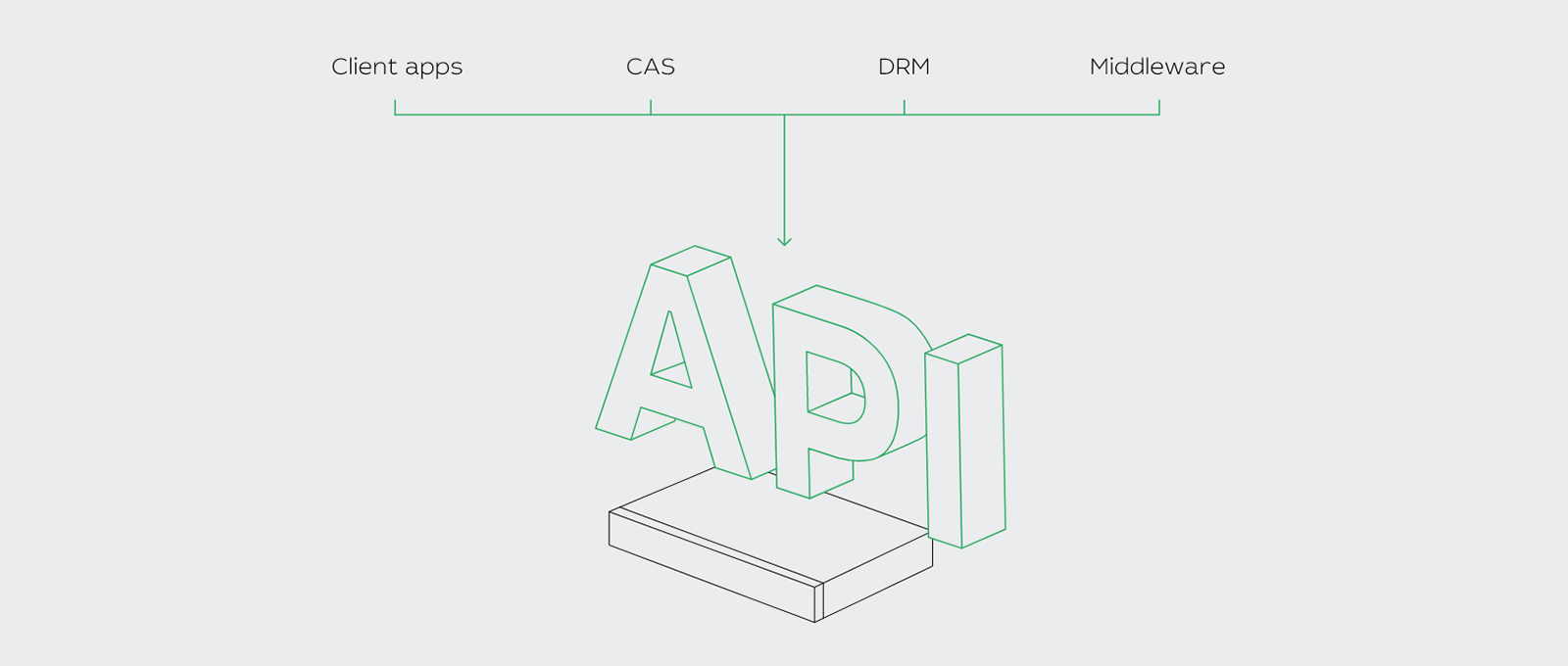

Easy integration via API

Infomir offers an API that makes it easy to integrate content protection systems and develop software. Create applications for Linux-based MAG set-top boxes as you would for web pages in HTML, CSS, and JavaScript.

This solution enables operators to create client applications for middleware, and system integrators to roll out software for hotels, cruise ships, and rotational camps.

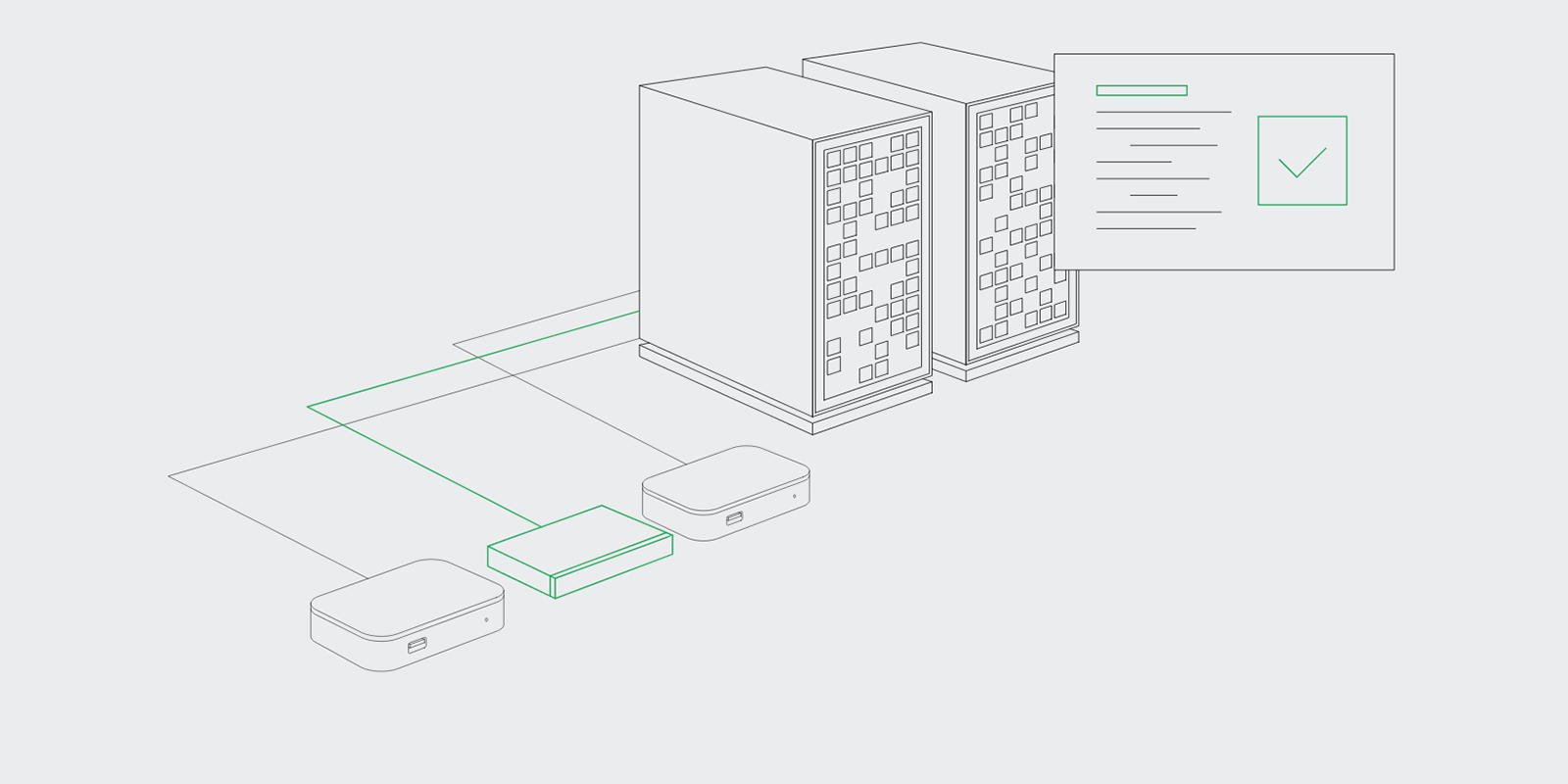

Easy transition from legacy MAG models

MAG540/540w3 is easy to integrate into an existing project that previously used MAG set-top boxes. It requires minimal adaptation to get the devices up and running.

Reliable and smooth playback

The MAG540/540w3 interface is fast thanks to its high-performance components. The device plays content smoothly and without delays, so users can enjoy it without worrying about rebooting or tweaking.

FAQ

Does Infomir have a set-top box knowledge base?

Yes, we do! Our updatable knowledge base contains instructions and answers to questions about Android, Android TV™, and Linux set-top boxes. Also, it covers the Ministra TV platform multiscreen middleware and the Ministra Player client application.

Operators can access guides to creating applications, customizing devices, and configuring MAG set-top boxes. This data will help their technical support teams quickly troubleshoot problems and set up user devices.

Do you have API documentation?

Yes, we havefully documented. the MAG JS API. The guides will save developers time they’d otherwise spend on contacting technical support. With our documentation, it’s easy to create applications for MAG devices and integrate middleware, CAS/DRM, and other solutions.

Which middleware is natively compatible with MAG540?

All MAG devices are natively compatible with the Ministra TV platform. Operators who use this middleware in their projects can include MAG540 without additional integrations.

Is it possible to integrate MAG540 with other middleware and CAS/DRM?

Yes, the model integrates with various middleware and CAS/DRM via API.

Also, Infomir plans to integrate MAG Linux set-top boxes with Widevine and Zixi CAS/DRM solutions. Integration with Securemedia and Verimatrix systems is available upon request.

How long will MAG540 last?

All set-top boxes manufactured by Infomir are designed to last for years. MAG540 has the hardware to run for months on end without rebooting. It plays content smoothly without crashing. MAG540 lets operators provide a reliable service to subscribers and save money on technical support.

Where is MAG540 manufactured?

Like other MAG devices, the model is designed and assembled by Infomir in Odesa, Ukraine.

What do operators think of MAG devices?

Millions of people around the world use MAG set-top boxes. Operators, system integrators, and distributors share their experiences in the Infomir product community.
