Infomir MAG544w3

Infomir MAG544w3

€101,48 EUR
€116,63 EUR €101,48 EUR
Sale Sold out
Taxes included.

More information

Linux Set-Top Box MAG544w3: High-Performance with HEVC and 4K Support

The hardware inside MAG544w3 STBs is so reliable that they may go months without needing a restart. The Amlogic S905Y4 SoC, which powers the devices, is a quad-core implementation of the ARM Cortex-A35 CPU. They are Linux-based and can play 4K video using HEVC compression, letting viewers experience high-definition material at reduced bitrates without any latency.

Dolby Digital Plus™ volumetric sound, when played over a current TV or sound system, will make your MAG544w3-watching experience even more immersive. The Ethernet port and Wi-Fi module guarantees a constant Internet connection and a faultless video playing experience, while the USB ports enable you to connect a mouse, keyboard, or external storage for increased convenience. The Micro Fusion shape of the body of the set-top box means it can be stored almost anywhere. Because of its sleek, contemporary style, it may complement a variety of decors.

Technology for the best user experience MAG 544w3

  • 4K and HEVC support
  • 1 GB RAM
  • 4 GB eMMC
  • Wi-Fi
  • Quad-core ARM Cortex-A35

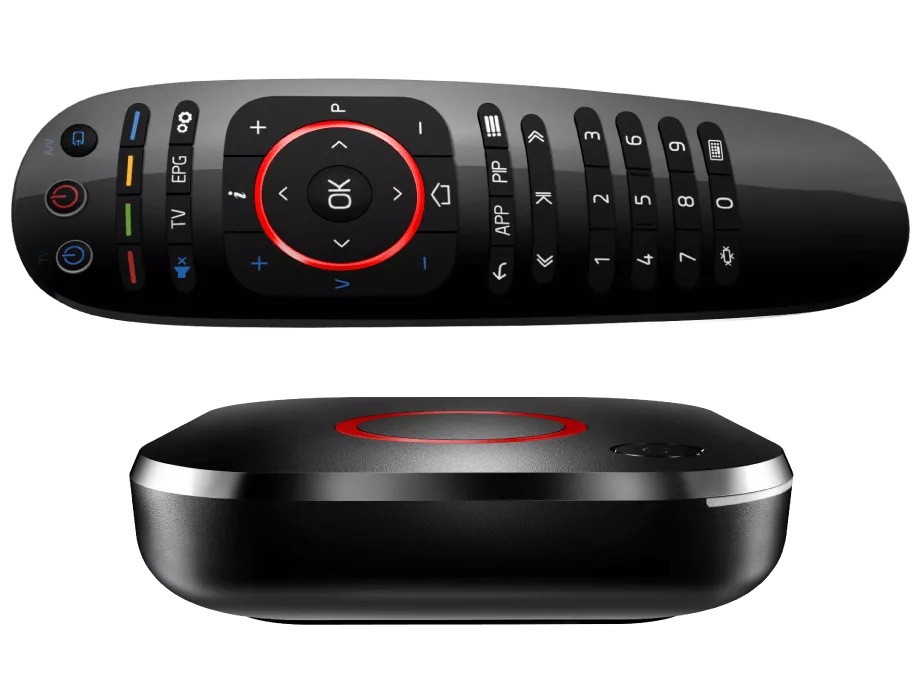

  • User-friendly IR remote

MAG544w3 specifications

Audio and video

  • Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formatsMP3, OGG, WAV, AAC
  • Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
  • Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formatsJPEG, PNG, BMP, RAW
  • SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formatsM3U, M3U8, PLS, CUE

    MAG544w3 specifications

    Audio and video

    • Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
    • Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
    • Audio formatsMP3, OGG, WAV, AAC
    • Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
    • Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
    • Image formatsJPEG, PNG, BMP, RAW
    • SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
    • Playlist formatsM3U, M3U8, PLS, CUE

    Hardware features

    • ChipsetAmlogic S905Y4-B
    • Performance16,500 DMIPS
    • CPUQuad-core ARM Cortex-A35
    • RAM1 GB DDR3
    • Storage4 GB eMMC

    Software and CAS/DRM

    • OSLinux 4.9
    • DRM/CASOn request
    • MiddlewarePre-integrated Ministra TV platform. We can integrate the operator’s applications into the image and customize or replace the image.

    Interfaces

    • Digital portsHDMI 2.1
    • Ethernet100 Mbps
    • USB2 × USB 2.0
    • Bluetooth—
    • Wi-FiBuilt-in 2T2R ac

    Power

    • Power supply unitDC 5 V, 2 A

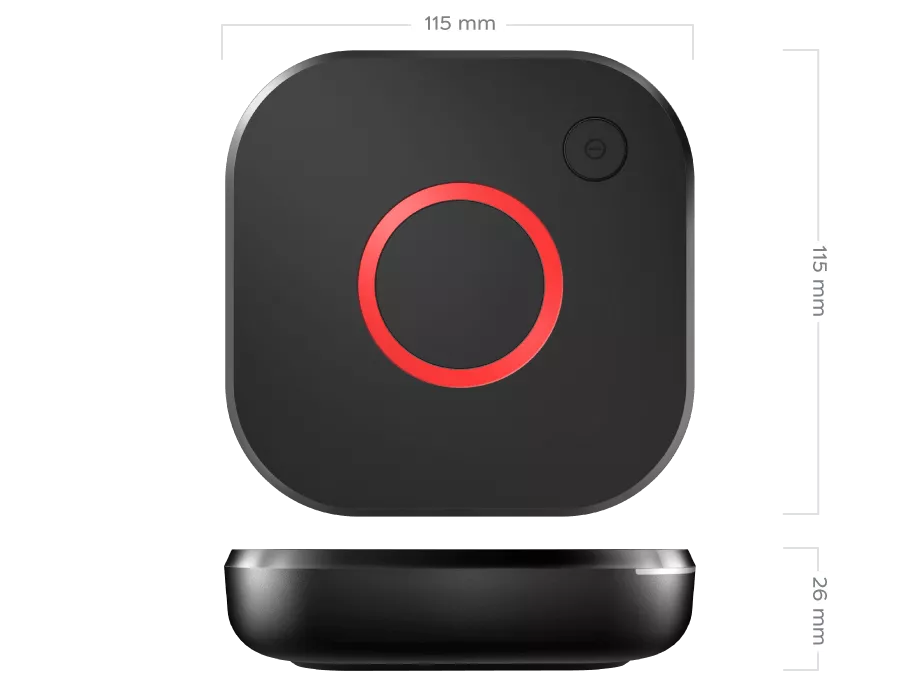

    Dimensions

    • Width/depth/height115 × 115 × 28 mm
    • Weight170 g
View full details
