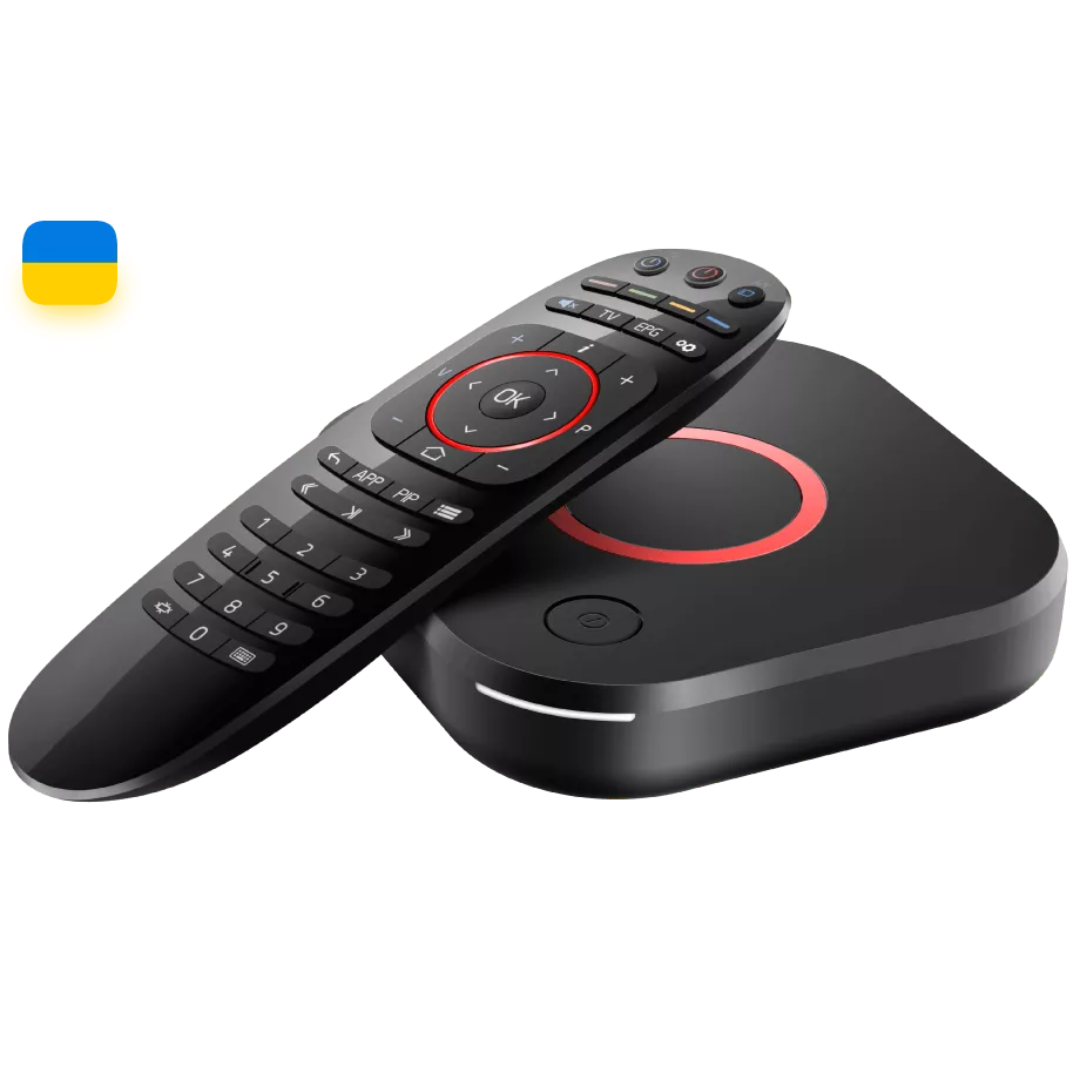

Infomir MAG544

Infomir MAG544

€90,56 EUR
€104,09 EUR €90,56 EUR
Sale Sold out
Taxes included.

More information

MAG544: Powerful 4K set-top box with HEVC support

MAG544 STBs have reliable hardware and can function for months without being rebooted. The Amlogic S905Y4 SoC, which powers the devices, is a quad-core implementation of the ARM Cortex-A35 Processor. The fact that they are Linux-based and can play 4K video using HEVC compression means that consumers may watch high-definition material at lower bitrates without experiencing any slowdown.

If you hook up your MAG544 to a newer TV or sound system, you’ll be treated to crisp, detailed Dolby Digital Plus™ volumetric sound. The Ethernet port assures a constant Internet connection and lag-free video playing, while the USB ports let you attach a mouse, keyboard, or external storage for increased convenience. With a Micro Fusion design, the compact form factor of the set-top box means it can be stored almost anywhere. Because of its sleek, contemporary style, it may complement a variety of decors.

Technology for the best user experience MAG544

  • 4K and HEVC support
  • 1 GB RAM
  • 4 GB eMMC
  • Quad-core ARM Cortex-A35
  • User-friendly IR remote

MAG544 specifications

Audio and video

  • Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formatsMP3, OGG, WAV, AAC
  • Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
  • Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formatsJPEG, PNG, BMP, RAW
  • SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formatsM3U, M3U8, PLS, CUE

    MAG544 specifications

    Audio and video

    • Video modesPAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
    • Audio codecsMPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
    • Audio formatsMP3, OGG, WAV, AAC
    • Video codecsMPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
    • Video containersTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
    • Image formatsJPEG, PNG, BMP, RAW
    • SubtitlesDVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
    • Playlist formatsM3U, M3U8, PLS, CUE

    Hardware features

    • ChipsetAmlogic S905Y4-B
    • Performance16,500 DMIPS
    • CPUQuad-core ARM Cortex-A35
    • RAM1 GB DDR3
    • Storage4 GB eMMC

    Software and CAS/DRM

    • OSLinux 4.9
    • DRM/CASOn request
    • MiddlewarePre-integrated Ministra TV platform. We can integrate the operator’s applications into the image and customize or replace the image.

    Interfaces

    • Digital portsHDMI 2.1
    • Ethernet100 Mbps
    • USB2 × USB 2.0
    • Bluetooth—
    • Wi-Fi—

    Power

    • Power supply unitDC 5 V, 2 A

    Dimensions

    • Width/depth/height115 × 115 × 28 mm
    • Weight170 g
